Polcd LQ035NC111 3.5 inch LCD Panel Module 320x240 RGB SPI Interface color 54 pin Square TFT LCM Display

Brand Name : Polcd

Model Number : LQ035NC111

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union

Supply Ability : 40,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Size (inch) : 3.5 inch 320*240

Brightness (cd/m²) : 300

Interface : 54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656, FPC

Driver IC : ST7701S

Viewing Direction(eye) : 6 o'clock

Contrast Ratio : 400:1

Display area : 70.08(H)x52.56(V) mm

Contact Now

TFT Display Description:

A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle provides clear and accurate image display from below, making it ideal for applications such as car navigation systems and industrial control panels.


Parameter:

Product name TFT LCD
Diagonal size 3.5 inch
Model LQ035NC111
Type TFT-LCD, liquid crystal module
Resolution 320(RGB)x240 QVGA 115PPI
Display area 70.08(H)x52.56(V) mm ;
Open area 73.03(H)x55.50(V) mm
Display brightness 300 cd/m2 (Typ.)
Pixel arrangement RGB vertical bars

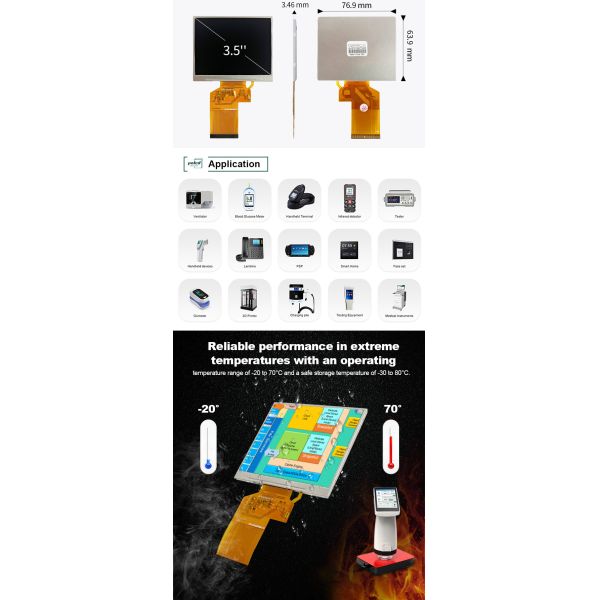

Physical dimension 76.9(H)x63.9(V) x3.46(T) mm
Surface treatment Haze (Haze 20%)
Contrast 400:1 (Typ.) (Transmission)
Response time 10/15 (Typ.)(Tr/Td) ms
Display mode TN, normally white display, transmissive
Recommended viewing angle 6 o'clock
Viewing angle 60/60/50/55 (Typ.) (CR210)
Color support 16.7M , 60% NTSC
Weight 30.0g (Typ.)
Frame rate 60Hz
Interface Type 54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656, FPC
Voltage supply 3.3V (Typ.)
Application Environment Operating temperature: -20~ 70 °C; Storage temperature: -30~ 80 °C
Type of light source WLED [6S1P], 10K hours, no driver
Touch technology No; supports custom touch


Applications

A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle has a wide range of applications. It is commonly used in automotive electronics for display screens in infotainment systems, rearview cameras, and GPS navigation systems. It is also used in industrial control systems such as PLCs, HMIs, and data loggers. Additionally, it is suitable for use in portable devices such as smartphones, digital cameras, and portable media players due to its compact size and low power consumption. Its 6 o'clock direction viewing angle makes it an ideal choice for applications where clear and accurate image display from below is required, such as navigation systems in vehicles and control panels in industrial settings.
